Tube Laser Cutting Services for Production Components

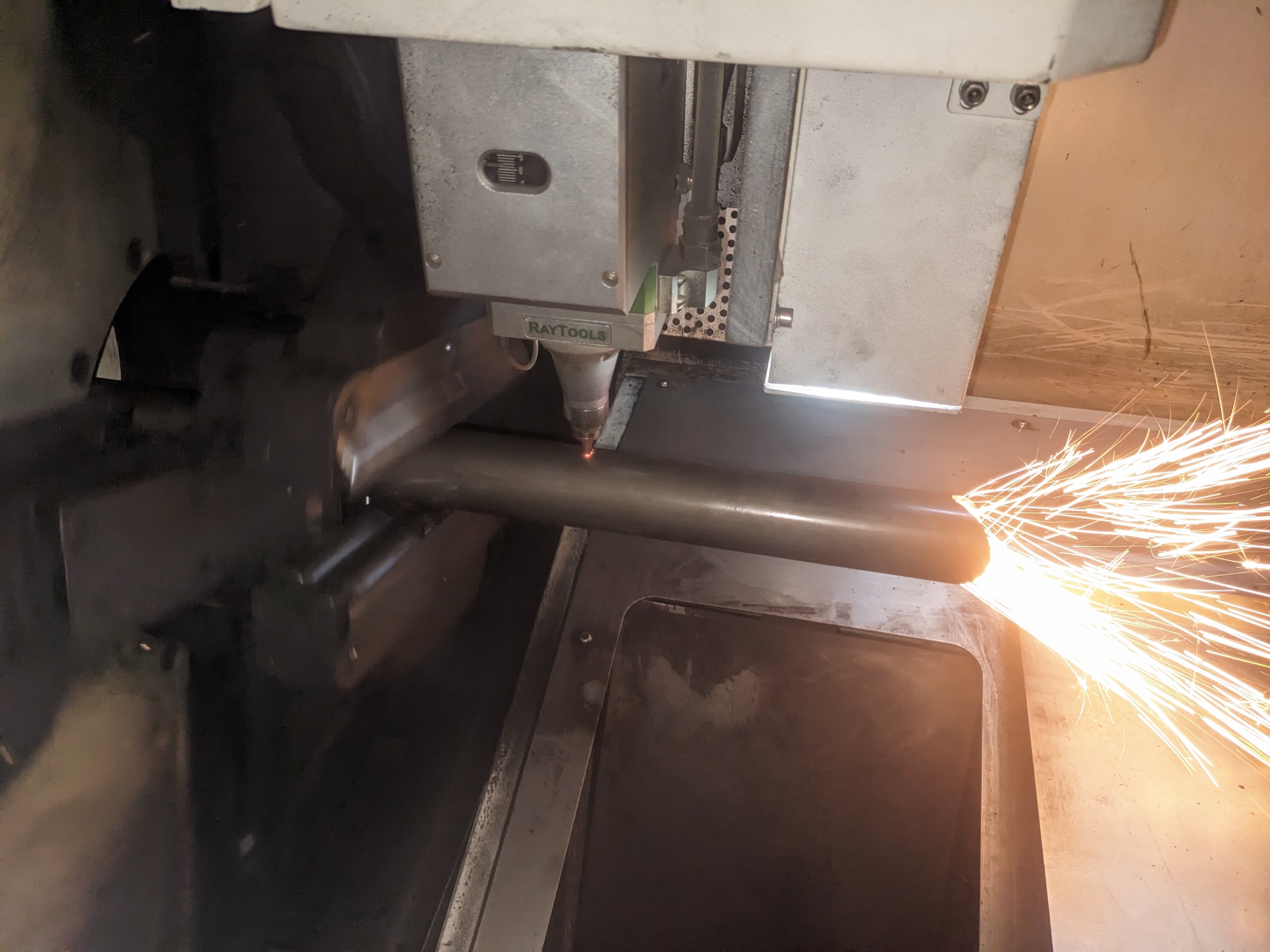

Seaborn Manufacturing produces built to print tube laser cut components from customer drawings for OEM and industrial production. Our Waterloo, Ontario tube laser processes round, square and rectangular tubing in carbon steel, stainless steel and aluminum, adding holes, slots, notches, miters, end profiles and locating features with repeatable CNC positioning.
Parts can be supplied as cut-only components or coordinated with CNC tube bending, machining, CWB-certified welding, inspection and assembly. The best fit is recurring production or defined production programs. Small cut-only jobs are considered when customer-supplied tube avoids inefficient material sourcing.

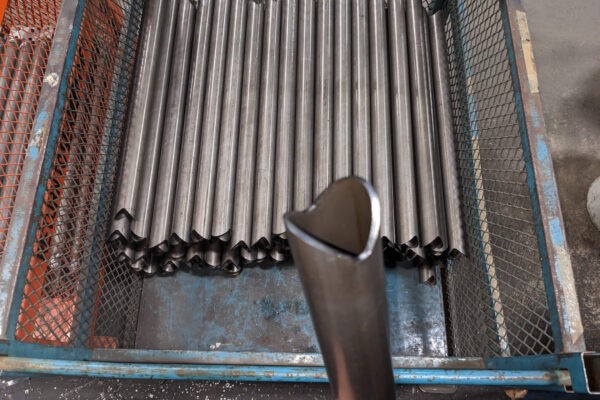

Round Tube Laser Cutting

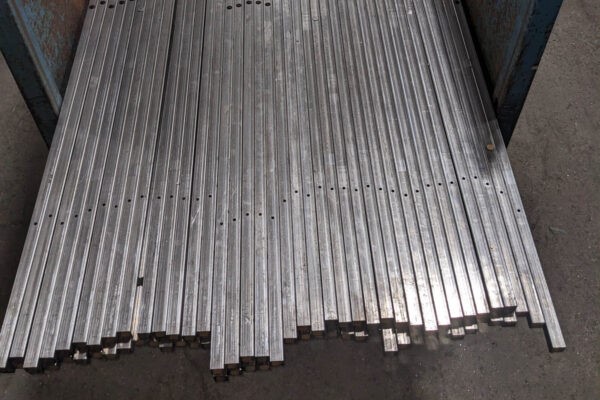

Square and Rectangular Tube Laser Cutting

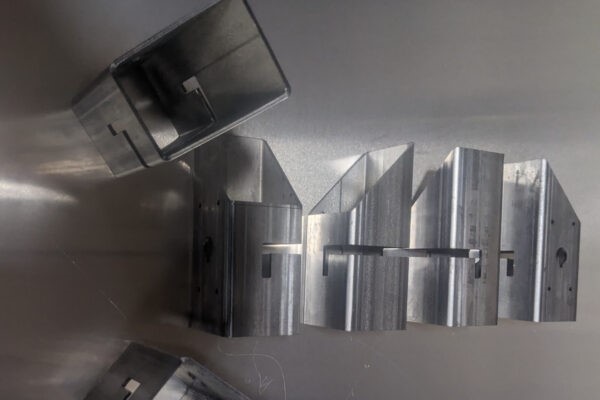

Laser Cut Features for Production Parts
Why OEM Manufacturers Choose Seaborn for Tube Laser Cutting
Seaborn supports built to print tube components for recurring OEM and industrial production. Customer drawings are reviewed for tube profile, material, wall thickness, cut geometry, tolerances and downstream operations so the cutting plan reflects how the part will be manufactured and assembled.
Tube Laser Cutting Applications for OEM Production
Tube laser cutting is most valuable when cut length and multiple programmed features can be completed in one operation. Seaborn uses the process for recurring built to print components and assemblies such as:
Tube Laser Cutting Capabilities and Specifications
These figures describe general machine capacity and are not blanket part guarantees. Material grade, tube profile, wall thickness, part length, feature geometry and tolerances are confirmed from the customer drawing before quoting.
| Capability | General Specification |
|---|---|
| Tube laser power | 2 kW |
| Carbon steel wall thickness | Up to ¼ in. (6.35 mm) |
| Stainless steel wall thickness | Up to 3/16 in. (4.8 mm) |
| Aluminum wall thickness | Up to 3/16 in. (4.8 mm) |
| Round tube | ¾–9 in. outside diameter (19–229 mm) |
| Square tube | ¾–6 in. (19–152 mm) |
| Rectangular tube | Up to 8 × 4 in. (203 × 102 mm), subject to the 9 in. circumscribed-profile limit |
| Incoming stock length | Up to 8 m (26.25 ft) through the bundle feeder |
| Production loading | Automated bundle loading for round, square and rectangular tube |
| Individual feature tolerance | Approximately ±0.005 in., subject to drawing review |
| Longer feature-to-feature dimensions: | May require Approximately ±0.010 in., depending on part length and tube condition |
| Cutting orientation | Laser head remains square to the tube surface; full bevel cutting is not available |
| Feature-positioning datum: | Features are programmed from the tube centerline, not an outside edge. Actual tube size and corner-radius variation can affect edge-to-feature dimensions, which should be identified during drawing review. |
Tube Laser Cutting Services Across Ontario and Canada
From our Waterloo facility, Seaborn supplies built to print tube laser cut components to OEM and industrial customers throughout Ontario and across Canada. Our primary service area includes Waterloo Region, the Greater Toronto Area and Southern Ontario, with shipping coordinated for recurring production programs elsewhere in Canada.
Quoting considers material source, production volume, finished-part length, packaging and delivery requirements so the supply plan fits the production program.
Drawing Review and Repeatable Tube Laser Production
Reliable tube laser cutting begins with accurate drawing and tube data. Before quoting, Seaborn reviews the material grade, tube profile, outside dimensions, wall thickness, corner radii, part length, cut features and required tolerances. Dimensions measured from an outside edge and long feature to feature dimensions are identified because tube variation and sag can affect final results.
After requirements are confirmed, established CNC programs and appropriate inspection methods support repeat orders. Clearly identified drawing revisions help ensure parts are produced to the correct requirements. Components can be supplied after tube laser cutting or moved into bending, machining, welding, inspection and assembly as defined by the production program.
Tube Laser Cutting Services FAQ
Provide the current drawing revision and available CAD data, material grade, tube profile and size, wall thickness, order quantity or estimated annual volume, critical tolerances and any required downstream operations. Also identify whether Seaborn or the customer will supply the tube.
Seaborn primarily processes round, square and rectangular tube. General capacity ranges are ¾–9 in. outside diameter for round tube, ¾–6 in. for square tube and rectangular tube up to 8 × 4 in., subject to the machine’s 9 in. circumscribed-profile limit.
General capacity is carbon steel up to ¼ in. wall thickness and stainless steel or aluminum up to 3/16 in. Actual capacity depends on the material grade, tube profile, size, corner radii and required cut features and is confirmed during drawing review.
For recurring production programs, Seaborn prefers to source and supply the tube. For small cut-only jobs, tube supplied by the customer is preferred because it avoids inefficient material sourcing. Both arrangements can be considered.
Yes. Components can be supplied after tube laser cutting or coordinated with CNC tube bending, machining, CWB-certified welding, inspection and assembly when required by the customer drawing. results for industries like automotive, construction, and manufacturing.
Individual cut features can typically be held to approximately ±0.005 in. Feature to feature dimensions across longer parts may require approximately ±0.010 in., depending on part length and tube condition. Critical tolerances are confirmed during drawing review.
No. Seaborn’s tube laser does not have a swing head, so it cannot produce full bevel cuts through the tube wall. It can produce miter cuts, end profiles, holes, slots, notches and locating features while the laser head remains square to the tube surface.
Typical tube laser lead times are two to three weeks. We can not guarantee any lead time without a prior mutual commitment.
Lead time depends on material availability, part geometry, quantity, downstream operations and current production scheduling. A committed lead time is provided through the quotation and order process; Seaborn does not publish a blanket guaranteed lead time.
