Metal Laser Cutting Services Ontario, Canada

  • Precision fiber laser cutting for all your metal needs tube or sheet
  • Your first choice for clean cut accurate metal parts
  • Our new fiber laser cuts up to 1.5” steel, 1” aluminum and 1” stainless steel
  • Tube laser ¾” to 9” dia and up to ¼” walls
Get in Touch

Metal Laser Cutting Services for Industrial Materials

Seaborn Manufacturing OEM metal fabrication shop floor in Ontario
01

Heavy Metal Laser Cutting

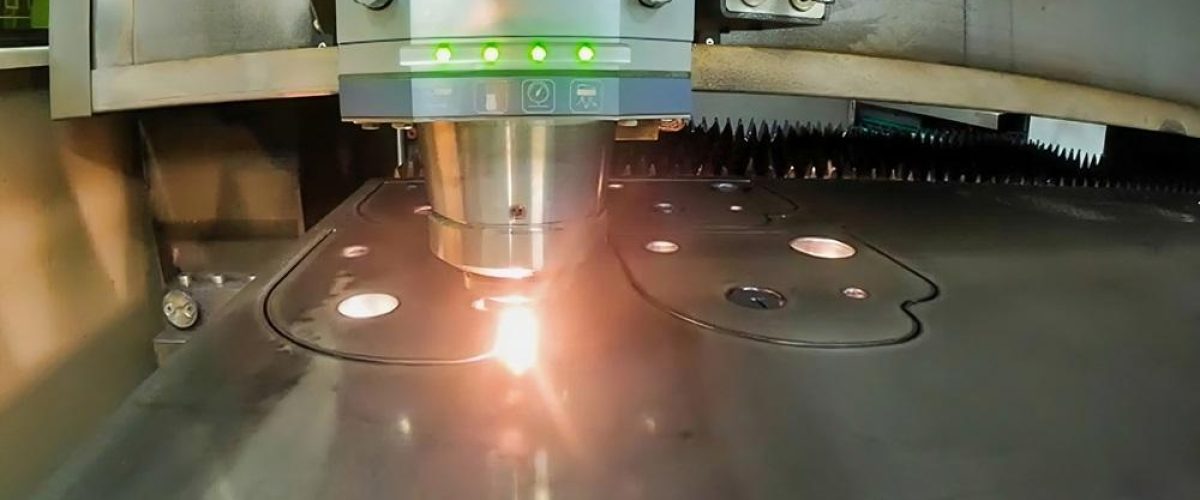

For heavy plate and thick gauge metal parts, Seaborn’s 20 kW fiber laser gives you clean, accurate cuts with low setup time. We cut carbon steel up to 2.0" thick, stainless steel up to 1" thick, and aluminum up to 1" thick for industrial components. You get clean edges, repeatable accuracy, and support for prototypes, production runs, and downstream fabrication. Seaborn is your first choice for heavy metal laser cutting in Ontario.
Read more
Tube Laser Cutting Rectangular
02

Steel Laser Cutting

General / common accuracy of + /- 0.005” (0.13mm). Steel sheet and plate cost far less than bar stock. Fast cutting our 20kw Fiber sheet laser can cut ½” plate at over 7 meters per minute. Very low set up times so economical for small and large part runs alike
Stainless Steel at Seaborn
03

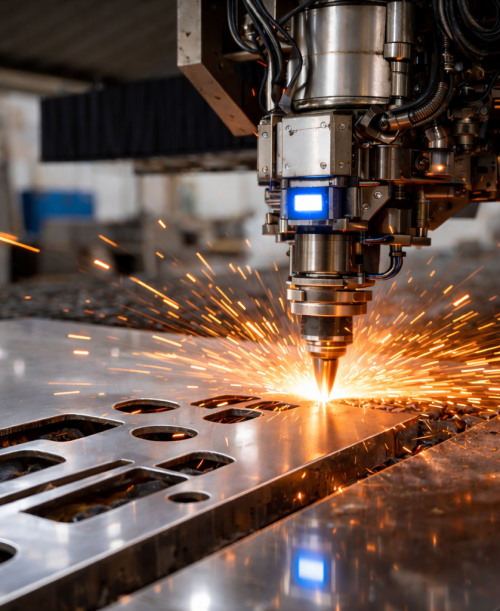

Stainless Steel Laser Cutting

We process gauge metal up to 1” thick stainless plate. Same General / common accuracy of + /- 0.005” (0.13mm) as steel. We can cut ½” stainless at more than 8 meters per minute. No tooling issues or special tooling required
Aluminum laser cutting seaborn
04

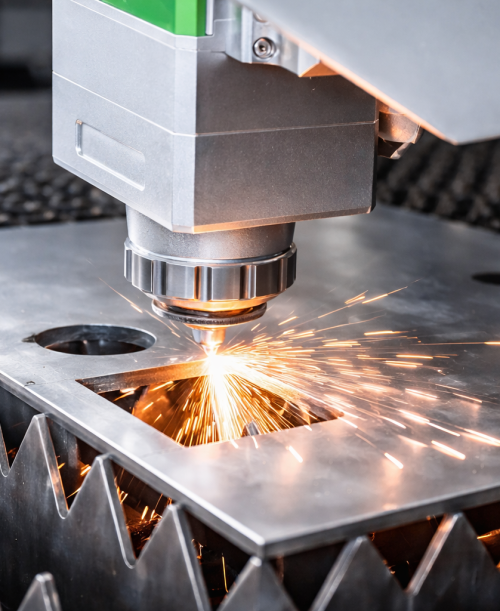

Aluminum Laser Cutting

We laser cut aluminium up to 1” thick plate, We provide a general / common accuracy of + /- 0.005” (0.13mm) on aluminium, We can cut ½” aluminum at over 5 meters per minute, More economical than other processing methods
Copper laser cutting
05

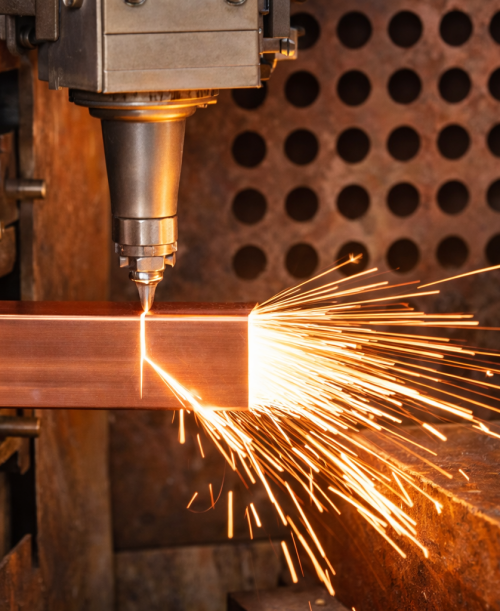

Copper Laser Cutting

We can laser cut copper up to 3/8” thick. Provide you with a general tolerance of +/-0.005’ (0.13mm). Cut speed of over 7 meters per minute with our 20kw fiber laser

Metal Laser Cutting Capabilities, Tolerances and Accuracy

For the majority of parts the general tolerance for our laser cutting is plus minus 0.005” or 0.13mm. The cut repeatability for our laser cut parts is plus minus 0.003” or 0.08mm.

Our 20kw laser produces far cleaner edges than most common laser will in thickener plates. As the plates being cut get thicker, more minor imperfections in the cuts will appear but our 20kw fiber laser minimizes these. While we can not eliminate all blemishes we believe you will be impressed with the quality of our laser cutting.

Laser Sheet Capacity
Our sheet laser can run up to 5 ft x 10 ft sheets or 1550 x 3050 mm
Max sheet weight is 1700 kg or 3750 lbs

Tube Laser Capacity
Our Tube laser can cut up to 9” (228mm) diameter or 6” square tube with up to 8 meters (315”) in length. Max tube weight for the tube laser is 260kg (570lbs) per tube

Material: Cut Capacity Sheet laser
Aluminum: We offer laser cutting of aluminum sheet and plate up to 1” thick
Carbon Steel: While the laser is rated for 2” thick material we do not cut thicker than 1.5” at this time
Stainless Steel: We will cut stainless for you up to 1” thick

Why Choose Seaborn Manufacturing for Metal Laser Cutting Services?

  • Powerful accurate 20kw fiber laser producing high quality parts
  • Our own in house nitrogen generator saving you money and us time
  • High performance tube laser with 8 meter bundle feeder
  • Cut quality second to none
laser cut seaborn

Metal Laser Cutting Services in Ontario and Canada

Uptown Waterloo
01

Laser Cut Waterloo

Your home town solution Exacting heavy metal cutting Quality in every cut from 20ga to 2” thick.
Welding and Fabrication Services in Cambridge, Ontario
02

Laser Cut Cambridge

Your metal cut right and on time laser cutting heavy plate OEM production support Full part processing available
Downtown Kitchener
03

Laser Cut Kitchener

Supporting your operation for one process or the complete package. Production ready facility All your laser metal cutting needs served in one location laser cutting 2” steel, 1” aluminum and 1” stainless plates
Welding and Fabrication Services in Guelph, Canada
04

Laser Cut Guelph

Supporting Canadian Manufacturers in Guelph and all of Canada Your source for laser cut sheet and tube laser cutting We make metal right laser cutting from gauge metal to heavy plate.
Toronto
05

Laser Cut Toronto

Providing laser cutting to Toronto and the GTA for all your plate cutting needs Need formed parts our CNC press brakes are tooled and ready Support OEM with quality metal work for over 40 years
Welding and Fabrication Services in Hamilton, Canada
06

Laser Cut Hamiltion

Metal laser cutting and full fabrication services We cut metal with laser accuracy. When you need it laser cut right call Seaborn
Welding and Fabrication Services in London, Canada
07

Laser Cut London

Laser cutting metals for more than a decade Tube laser services Cutting aluminum and stainless to 1” thick and carbon steel to 1.5” thick

Metal Laser Cutting Services FAQ

All our sheet and tube lasers are fiber lasers.

Laser costs are determined by the running time. For most parts we cut the metal is far more of the cost than the laser time.

Yes a powerful laser can cut through metals.

There is not one specific type of laser you need to cut metal. Commonly in industry CO2 lasers were used until about 2020 roughly and then fiber lasers took over the market.

Seaborn’s 20 kW fiber laser is designed for heavy plate and thick-gauge metal cutting. We process carbon steel up to 2″ thick, stainless steel up to 1″ thick, and aluminum up to 1″ thick with outstanding precision and clean edge quality. From one-off prototypes to full production runs, we deliver fast turnaround times, consistent accuracy, and dependable results for demanding industrial applications.
